Decorative Woven Mesh

Introduction of decorative woven mesh

Decorative woven mesh, also named metal fabric or architectural mesh, is weaved with high quality stainless steel wire , aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative material in the modern industrial and architectural decoration applications.

Material: Stainless steel wire (AISI304, AISI316, AISI316L).

Features: Available in many different patterns, each with its own characteristics and optical effect.

Applications: Due to their multiple functional and aesthetic qualities, the meshes are suitable for various applications In architecture and interior design, metal fabrics are used for decoration as:

Woven Wire Cloth Drapery -01
Decorative Woven Mesh - 01
Woven Wire Cloth Drapery -02
Decorative Woven Mesh - 02

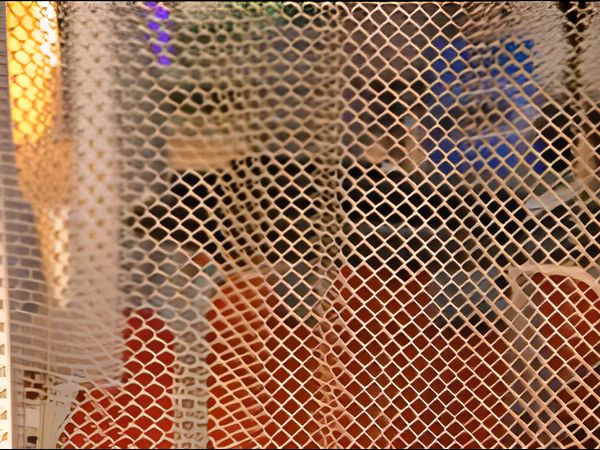

Decorative Woven Mesh-03
Decorative Woven Mesh - 03

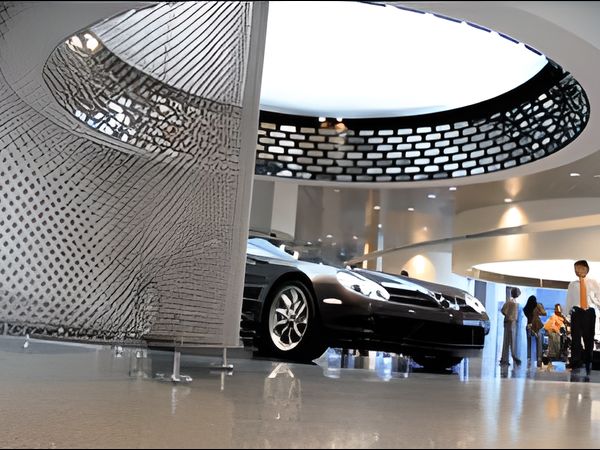

Decorative Woven Mesh-04
Decorative Woven Mesh - 04

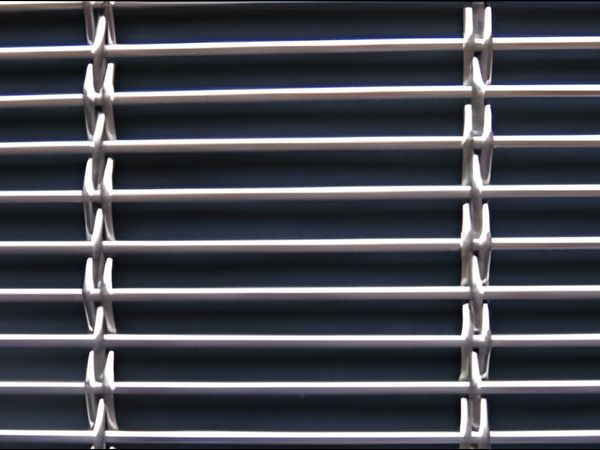

Decorative Woven Mesh-02
Decorative Woven Mesh - 05

Specification of decorative woven mesh

Specification of decorative woven mesh
Item No.s Open Area (%) No.s of Cable Cable Dia. (mm) Cable pitch (mm) Rod Dia. (mm) Rod pitch (mm) Thickness (mm) Weight (kg/m2)
SMT - 405 42 4 2 50 3 6 7 11.56
SMT - 405S 44 4 1.5 50 3 6 6 10.67
SMT - 406 43 4 2 60 3 6 7 11.22
SMT - 408 45 4 2 80 3 6 7 10.80
SMT - 426 44 4 0.75 26.4 1.5 3 3 5.20
SMT - 426X 51 4 0.75 26.4 1.5 3.5 3 4.62
SMT - 436 44 4 1 36 2 4 4 7.06
SMT - 436S 44 4 1 36 2 4 4 7.06
SMT - 4036 62 4 1 36 2 6.6 4 4.55
SMT - 4270 51 2 2.7 50 3 7 8.4 10.02
SMT - 4288 51 2 0.6 5.5 0.8 2.3 2 2.60
SMT - 4305 42 3 0.45 3.5 0.5 1.6 1.4 2.09
SMT - 4311 56 3 3 40 3 11 9 9.48
SMT - 4312 60 3 3 45 3 12 9 8.57
SMT - 4185 40 1 1.8 4 1.5 5.5 5.1 6.00
SMT - 4252 33 1 2.5 5 2 6 7 10.90
SMT - 4525 44 1 2.5 6 2 8 7 8.79
SMT - 4525Z 44 1 2.5 6 2 8 7 8.79
SMT - 4510 35 1 2.5 5 3 10 8 12.46
SMT - 4351 28 1 3 5 3 10 9 15.43
SMT - 3180 74 3 2.75 180 4 18 9.5 6.44
SMT - 3135 51 4 1 35 2.75 6.5 4.75 8.11
SMT - 3150 80 3 2.75 150 3 20 8.5 3.82
SMT - 3154 85 3 2.75 150 4 40 9.5 3.50
SMT - 3160 76 3 3 160 4 20 10 6.15
SMT - 3125 61 4 0.75 15 1.2 5 2.7 2.78
SMT - 3240 62 2 2.75 40 4 14.5 9.5 9.41
SMT - 3245 56 3 1 45 2 5 4 5.50
SMT - 3250 59 4 1 50 2 5.5 4 5.13
SMT - 3260 55 2 1.2 60 3 7 5.4 8.47
SMT - 3270 40 2 1.05 36 4 7 6.1 14.90
SMT - 3810 65 3 2 80 3 10 7 6.67
SMT - 3810S 65 3 2 80 3 10 7 6.67
SMT - 3825 71 3 1.6 80 2.5 10 5.7 4.58
SMT - 3811 67 3 2.75 110 4 14.5 9.5 8.32
SMT - 3812 64 3 2.75 120 4.5 14.5 10 10.07
SMT - 1525 35 1 2 17.5 1.5 2.5 5.5 7.17
SMT - 1530 0 1 2 17.5 1.5 1.5 5.5 10.98
SMT - 1535 51 1 2 17.5 1.5 3.5 5.5 5.53
SMT - 1535S 51 1 2 17.5 1.5 3.5 5.5 5.53
SMT - 1545 59 1 2 17.5 1.5 4.5 5.5 4.63
SMT - 1537 62 1 1.3 17.5 1.25 3.75 3.85 3.26
SMT - 1537S 64 1 1.5 17.5 1.5 5 4.5 3.67
SMT - 1550 53 1 2 17.5 2 5 6 6.53
SMT - 1572 63 1 2 17.5 2 7 6 5.08
SMT - 1570 69 1 2 35 1.5 5.5 5.5 3.32
SMT - 1585 73 1 2 17.5 1.5 8.5 5.5 3.13
SMT - 1705 35 1 1.2 5 1.75 × 0.6 5 3.6 3.00
SMT - 1706 40 1 1.6 3.2 1.75 × 0.6 6 4.4 4.90
SMT - 1720 27 1 2 3.1 1.75 × 0.6 5 5.2 8.70
SMT - 6112 52 1 2 4.5 2 32 6 6.44
SMT - 6120 4 1 1.5 4.9 1.5 1.6 4.5 11.85
SMT - 6148 0 1 1.5 9.3 2 × 1.5 2.5 5 13.50
SMT - 6155 50 1 2.5 15 2 5 7 7.73
SMT - 6225 64 1 3 20 2.5 10 8.5 6.83
SMT - 6212 43 2 1.2 17.5 2 4 4.4 7.40
SMT - 6216 58 2 1.2 17.5 2 6 4.4 5.28
SMT - 6255 53 1 2.5 15.4 2 5.5 7 7.20
SMT - 6415 70 2 4 169.2 4 15.2 9 7.89
SMT - 6510 32 1 1.6 5.4 1.35 2.5 4.55 7.64
SMT - 6514 0 1 1.5 4.8 1.5 1.5 4.5 12.50
SMT - 6515 0 1 1.6 5 1.5 1.5 4.7 12.78
SMT - 6517 0 1 2 8 1.5 1.5 5.5 12.70
SMT - 8160 64 1 7 × 1 15 7 × 1 15 9 7.60
SMT - 8316 59 3 4 × 1 20 4 × 1 20 6.78 6.70
SMT - 8535 43 1 4 × 1 6.5 4 × 1 6.5 6.78 9.90
SMT - 8713 59 1 7 × 1 13 7 × 1 13 9 8.79
SMT - 8513 65 1 5 × 1 13 5 × 1 13 7.62 6.30
